应用与筒介/Brief Introduction：

注谢使需要开水生产产品注谢使需要开水是纯化水经水蒸气蒸馏所述，微生物内毒物等条件均合适国内 药典注谢使需要开水项下规则的水体质量条件，能作营生物医药工厂中特殊真接注谢入躯干内中成药的石油醚。注谢使需要开水生产产品最注意的涉及到注谢使需要开水化学合成、反复吸收、技术性分摊和工艺设备把控好等最注意的输出模块。

性能/Characteristic：

◆全电脑自动基本运作原则，预防师误基本运作带动的制作损失率；Automatic operation mode, to prevent losses of wrong operation of production;◆元件选择316L才质；Components in 316L texture◆带PLC掌控的CIP货品；CIP products with PLC control◆登记与存有冲洗期间的基本参数与流程；Record and save the parameters of the cleaning process and steps◆足够GMP符合要求的可产品追溯性与顾忌明性； Meet GMP requirements traceability and accountability◆一起化设计制作可以有效避免浪费空間；Integrated design can effectively save space◆建立产生和的清洁的高效设置；Implement production and clean fast switching◆巴氏消菌消菌，清洁更切底；Babbitt disinfection sterilization, cleaning more thoroughly◆多效分馏机：电脑整机滤油器连到整体应用会自动焊接方法，按卫生学级标，伐门应用快卡连到，预防了注射液体冲水的多次空气污染；Multi-effect distillation machine: the machine connection all adopt the automatic welding, according to the level of healthstandard, the valve with fast connection, to eliminate the secondary pollution of water for injection◆纯蒸汽式进行器：PLC电脑实际操作控制工具栏，可0-100%手动调节器至都要的总产值特殊要求；The pure steam generator: PLC man-machine interface operation, can be 0-100% automatically adjust to the need of production requirements◆3D无盲区设计的：皮下注射自来水系統整洁导压管实现GMP3D规定要求，胶垫为PTPE/EPDM，pu气管阀标准按照时为90度，不断重复输油管线按照设为0.5的倾斜度，设低开为排卸点,同时以湍液的状态不断重复外溢的存放和气力输送机系統，必免微生物发酵体的蔓延；3 d design without dead Angle: clean water for injection system satisfies the requirement of GMP3D tube, rubber pad of PTPE/EPDM, when mounted horizontally is 45 degrees, the diaphragm valve loop pipeline installation set as 0.5 grade, set low emission points, and the turbulent fluid state circulating storage and conveying system, prevent microbes breeding◆完整性的档案软件设备：①档案按照GMP规定；②自然化掌握软件设备可按照GAMP5；③3Q档案要求化工厂安全验证的需要。Complete the file system: (1) documents conform to GMP requirements; (2) automatic control system can meet GAMP5; (3) 3 q documents meet the needs of the pharmaceutical factory to verify◆配齐高机械性能变频柜泵用作气流输送和调整滴注自来水。Equipped with high performance variable frequency pump used to transport and distribution of water for injection◆双板传热器，在纯化水长时间都间隔再循环的时候中更好地发挥冷去效果。Double plate heat exchanger in the purified water cooling effect in the process of long cycle◆接种水贮罐先期主要采用立试贮罐一方面立式贮罐，够满足传送泵潮位标准，物理学放置罐中流体密度以防生物技术膜确立。Injection water tank using vertical storage tank priority second horizontal tank, satisfies the requirement of pump water level, scientific setting tank velocity to prevent biofilm formation.◆选取80℃以上的隔热重复定制，放到水设计微动物蔓延和危害。Adopts the design of above 80 ℃ heat circulation, prevent microorganism growth and pollution of water system◆配发导电连接热处理加熱（压缩空气热处理加熱）呼吸道滤水器。Equipped with electric heating, steam heating) breathing filter◆罐底有水出口加设锥型挡条以拉大采冰面，阻止电磁。Adding bottom outlet conical baffle to expand in the water, prevent eddy current◆贮罐是接入使用氢气保護，维护制药业用水的吸收及都分配好系统正压力，控制外表离交柱被污染。Tank access using nitrogen protection, maintain positive pressure pharmaceutical water storage and distribution system, prevent the reverse flow of external contamination◆医药用纯净水推送泵用到316L不绣钢制作（浸水组成部分），电磨光并钝化净化处理。Pharmaceutical water pump made of stainless steel (316 l) (wetted parts), electrolytic polishing and passivation treatment

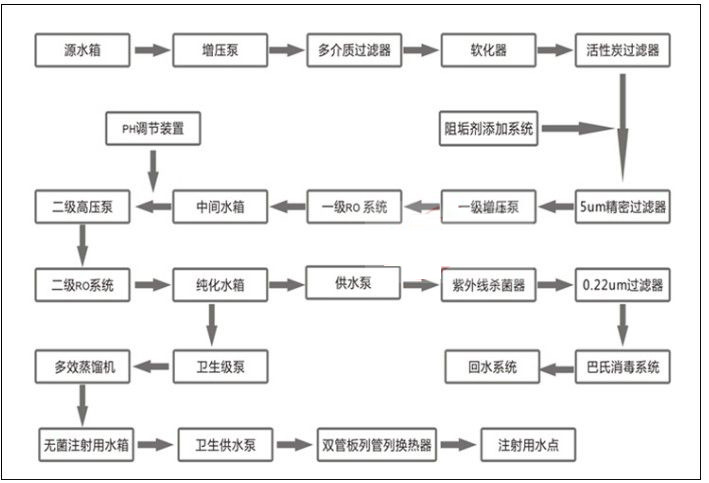

三、程序生产技术方案图
