贷款用途与详细介绍/Brief Introduction：

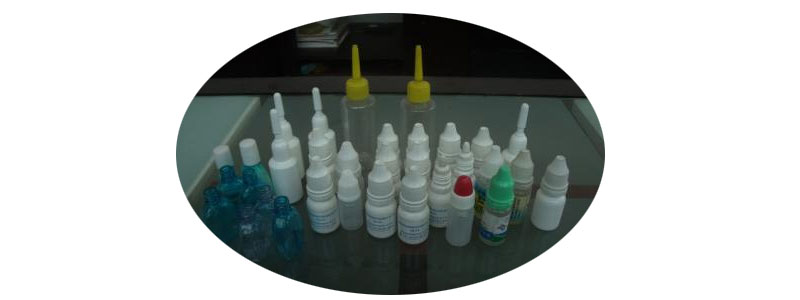

超声波焊接机可用以于2-30ML不同的材质原料的正方形扁形橡胶或玻璃板瓶的眼药剂罐装生产线、智能电子烟油等小极量罐装生产线.超声波焊接机由高精度高气缸结构精度等级结构给出精度等级等分盘标记上塞上盖;加的速度度气缸结构传送系统给出旋盖头的升缩;恒转距旋盖;运动泵量值溯源罐装生产线;触碰屏实操.无瓶不罐装生产线,不带内塞,外盖.具标记准确,传送系统能保持稳定,自我保护瓶盖子,量值溯源准.实操简约等优势之处。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

优势特点/Characteristic：

◆微pc设制、装量精准、操作步骤非常方便。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆设备主机轉速可实行无级变速直流变频调速器。the mainframe running speed is stepless frequency conversion.◆年产量量自动的一定量设定。the product quantity can be controlled. ◆很多种电脑故障的提示实用功能(如低气压表。无包装、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆电脑智能停电作用，对同一个发展轨道展现不间断无罐装、无内塞实际情况可电脑智能停电。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

能力性能/Main Technical Parameters：

符合规格型号Filling Volume	2-30ml
生产的特性Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
灌装设备准确度Filling Precision	≤±1%
开关电源 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
全自动上塞率Stoppering rate	≥99%
供气Air Supply	1.3 m3/h    0.4-0.8Mpa
功效 Power	2.0 kw
机气总重量Weight	550 kg
自己的外观尺码Dimension	1800*1000*1500mm
