领域与简绍/ Brief Introduction：

本工作线由全自主理瓶机、滚轴式洗瓶机、消毒剂常温、干燥机、眼灵药装灌旋盖机、立试标贴纸飞机机组成，可结束理瓶、水、气的擦拭、吹干及二氧化碳消毒剂、装灌、加塞、旋盖、标贴纸等多种工序，最主要广泛用于眼灵药举例说明他小含水量氢氧化钠溶液的联线工作，也可单机手游独力使用的。可以合适GMP需要。This production line consist of  Automatic Bottle Unscrambler,  Bottle Washing Machine, Tunnel Type Sterilization Drier, eyedrop filling machine, Vertical Labeling machine, can complete bottle sorting, water,and gas cleaning, drying and ozone disinfection, filling, plugging, capping, labeling, mainly used in eyedrops and other small doses of solution, also can be used single independently.　 Meet the GMP requirement.

的特点/Characteristic：

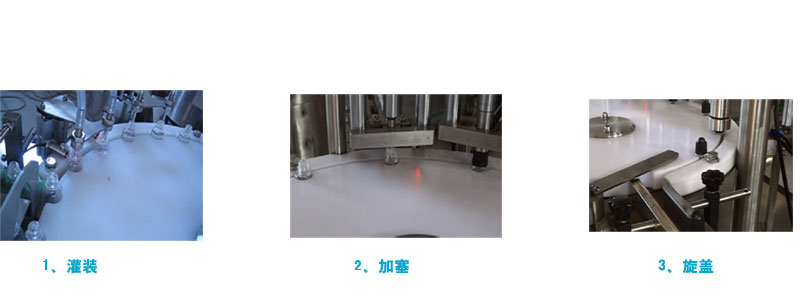

滤油机组构思的结构恰当，工作稳定性高、灌装设备定位精度就越高，具在国内竞争对手业现进的水平。是完全合乎GMP标准的。     眼蓝药水分装旋盖机早就是我公司的3代护肤品，人机对战画面抑制，运动泵分装，由真空室吸机械化手代用电磁阀非常好的打塞，保证质量了稳固性和成品率率。主要采用恒功率旋盖，具无瓶不分装、无塞不上盖，无瓶无塞可定时停止的用途。    It with reasonable structure, higher precision in filling, reaching the advanced level in domestic same business. Meet with requirement of GMP standard completely.eyedrop filling capping machine is a third generation product, human-machine interface operation, filling by peristaltic pump, replace air cylinder with vacuum drived manipulator for plugging, aquire higherstability and percent of pass. Constant torquecap screwing. No bottle no filling, no plug no capping and automatically stop if cap and plug is under-supply.

系统参数值/technical parameters：

用于尺寸/Bottle size	10-20ml
加工效果/Capacity	40-60瓶/分  70-120瓶/分 40-60/  70-120 bottles/min
供水心理压力/ Hydraulic Pressure Mpa	0.3Mpa
拿排水量 /water consumption	0.5 m3/h
是否干净压缩的空气质量的压力 /Clean compressed air pressure	0.6-0.8Mpa
干净干燥压缩视频暖空气使用/Clean compressed air consumption	300 L/min
供电/Voltage	380V/50Hz
热效率/Power	5.5 kw
生育线总长/Dimension	11000*1500*1900mm
