用处与概述：/Purpose and introduction

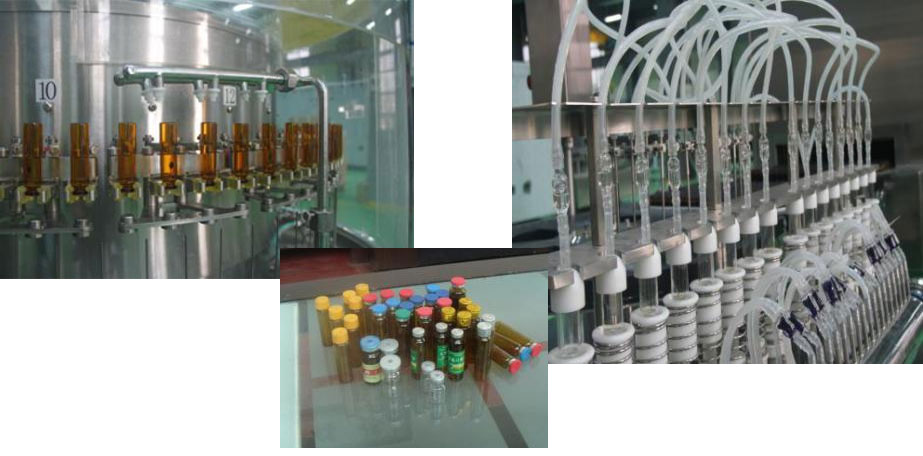

冲剂液洗烘灌轧联合线由立试多普勒彩超波洗瓶机、铁路桥式热气 巡环杀菌处理真空烘箱、冲剂液装灌轧盖机等构成，可以于 5-30ml 等的不同规 格冲剂液瓶的出产的。可已完成对保健药品出产的中安瓿瓶淋水、多普勒彩超波家电清洗、冲水、充 气、干燥杀菌处理、散热、装灌、轧盖等生产工艺过程的联合运作。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

特征 :/characteristic

◆洗瓶机运用机械化手夹瓶，支持多种多样外形尺寸的矿泉水瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶用于热气喷针回转式定位放进去玩法，的洗涤疗效好，不浪费的行为再生资源。并拥有针架防晃动裝置，提高自己喷针放进去玻璃瓶的准确无误度，以减少断针的现象造成；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶整个的雾气液压管路、喷针齐全独有拆开，以免 了交叠环境破坏，合适GMP实验室管理标准规定要求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶罗杆前加设缓存块，有保护措施罗杆，避免碎瓶的功效Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶用于综合进口的同步软件带，联接拨块气力输送机胶囊液，行驶可信度可信度In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆烘烤箱通过红外线蒸汽加散铜管，不锈钢材质的蒸汽加散铜管两层蒸汽烧水温竖直性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆灌装设备轧盖机自选配卫浴陶瓷泵、不透钢泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆灌装线无瓶止灌，无瓶不轧盖基本功能。Pieces filling without bottle filling, no bottle no rolling function.◆整线主要包括PLC总保持、变頻器、触屏屏保持技术水平，使用增强正规。触屏屏可显现各单机游戏的使用感觉，各保持点的出水量、大气压力、风速、室温等显现，各电开关感觉和出现问题的显现，出现问题的个人确诊和出现问题的了解及排查方式方法。使某个的生產过程中 实现智能化以及自动化化保持，联线含有三机自动化平稳裝置，绝对的生產均匀正规。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.通过企业客户的必须要，还可供加装：According to the needs of customers, but also available for selection:◆西门子设备、施耐德开关、西门子、台达等茶叶品牌控住设备；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气工作压力、温度及超音波波的强度、埃尘离子、风量优酷云论文检测、報警、记录卡、网页打印系统。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、没有细菌分隔器系统。Mixer ORABS, CRABS, aseptic isolator system.

科技产品参数：technical parameters

适宜规格参数Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
灌装生产线准确度Filling accuracy(%)	≤ ± 2.5
灌装线头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖合格品率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
