的主要用途与间介/Purpose and introduction：

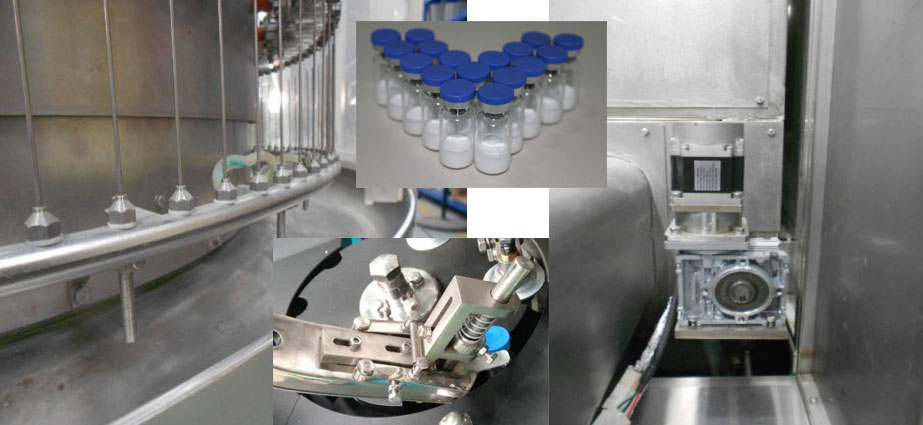

NQGF型西林瓶粉针洗烘灌装轧盖标贴协同线 由QCL系例双面超音波波洗瓶机、AQMR所谓的隧道式制热重复杀菌真空烘箱、NQFGX系例数控机床丝杠粉剂灌装机、NQ-50轧盖机、NQWTB-120标贴空气能机组成，也可单机联机操作。满足于7-25ml规模的西林瓶粉针的生育。能提交喷洒打压试验、超音波波粗洗、瓶侧壁水拆洗、瓶壁有陆续分次重复水拆洗、1次吹气、1次鲜活水拆洗、陆续分次吹气、瓶侧壁吹气、拆洗、打火、吹干杀菌去热原、空气冷却、灌装、加塞、轧盖、标贴等二十几道工艺流程。NLGF schering bottles booster injection wash baked repackaging rolling cover labeling line consists of QCL series vertical ultrasonic bottle washer, ASMR tunnel type hot air circulation oven. NFFGX series CNC screw powder filling machine, NF-50 rolling machine, NFWTB-120 labeling machine, and also can be used stand-alone. Suitable for 7 to 25 ml specification schering bottles of water production. Can finish the spray water injection, ultrasonic thick bottle washing, the outer wall of water flushing, bottle wall continuous secondary circulating water flushing, a blowing, a fresh water rinse, two consecutive bottle blowing, blowing the outer wall, preheating and drying sterilization to pyrogen, cooling, packaging, gasser, cover, labeling and so on more than 20 procedures.

特别/characteristic：

◆洗瓶机分为机手夹瓶，实用多品种的西林瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of schering bottles;◆洗瓶选取热气喷针反复定位跟踪加上措施，拆洗实际效果显著，勤俭节约资源。并具有针架防颤动保护装置，提升喷针加上罐子的精确性度，削减断针症状有；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶一小部分水雾液压管路、喷针仍然人格独立独立，杜绝了穿插污染源，具备GMP正确符合要求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶螺丝杆前装个储存块，有庇护螺丝杆，以减少碎瓶意义；Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottle;◆洗瓶机出瓶选择产品 进口商同步软件带，衔接拨瓶块气流输送西林瓶，进行维持安全可靠；Pieces out of the bottle inside the whole import synchronous belt, the connection dial the bottle conveying schering bottles, operation is stable and reliable;◆干燥箱用暧风反复的受热，温暖不规则，环保节能；Oven adopts hot air circulation heating, temperature uniformity, energy saving;◆烘烤箱还拥有防就跳闸维护性能。加载安全可靠；Mixer oven has suddenly loses power protection function. Run security;◆干燥箱可配循环往复水冷散热保护装置，不耗损率屋子新风量，下降屋子的差压不动平衡机的安全隐患室内降温体验好；Mixer oven can match circulating water cooling device, not loss room air volume, reduce the risk of differential pressure imbalance in room cooling effect is good.◆烘干箱可配气体压力自動不取舍量调结系統减低屋子里和烘干箱的气体压力不不取舍量构成的高温环境段位移，罐装间洗烘间热度升高教一类别的事情；Mixer automatic oven can match differential pressure balance control system to reduce the room and high temperature oven pressure difference caused by the imbalance of period of migration, filling between wash between baking temperature and so on a series of problems;◆烤箱开设DOP探测插孔(分为静压、风力、颗粒物颗粒探测口)；Mixer oven with DOP test interface (including wind pressure, wind speed, dust particle detection);◆烤箱空气冷却段可带迅雷在线消毒工作(FDA特选)；Mixer oven cooling segment with the function of sterilization (FDA selected);◆烘烤箱网带可带超声拆洗涉及CIP在线免费拆洗系统；Type mixer oven mesh belt with ultrasound scanning CIP online cleaning system;◆干燥箱内腔室可实行全座向、多弯度压力水擦拭；In pieces inside the oven chamber can be all-round, multi-angle high-pressure water flushing;◆散装机选用國際更最先进的制定基本原则，兼有公路度，且分瓶精确度，更新样式件方便快捷；Mixer racking machine adopts the most advanced design concept, high speed, and bottles of accurate, replacement of a convenient;◆分开包装机通过互动台达伺服无刷电机无刷电机驱动器程序分开包装罗杆旋轉，装量准确度；Mixer racking machine adopts ac servo motor drive the repackaging screw rotation, the load accurately;◆分开包装机进行装量的变动一直在触屏屏上保证 ；Mixer packer adopts the load adjustment directly on a touch screen;◆全自动灌装机机可选装配百级间歇式层流罩；Mixer packer optional circulating laminar flow hood best level;◆分开装袋机无瓶变慢分开装袋，无瓶不带塞用途。Racking machine without stop packing bottle, no bottle no stoppered function.◆整线选择PLC总操纵、直流伺服掌控器、触屏屏操纵技能，执行稳定牢靠。触屏屏可凸显各单人的执行感觉，各操纵点的出水量、大气压、传热系数、温等凸显，各转换开关感觉和故章凸显，故章自我价值疾病诊断和故章剖析及排出办法。使整体出产的时候做到重新化操纵，联线兼有自动控制稳定系统设计，保护出产平衡牢靠。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. Make the whole production process automation control, on-line has the automatic balancing device, ensure production equilibrium is reliable.利用大家的需用，还可供选择装配：According to the needs of customers, but also available for selection:◆西门子操作系统、德力西、三凌、台达等产品的控制操作系统；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气压力值、油温及mri波硬度、颗粒物水粒子、空气流速网上监测、报警灯、记下、复印操作系统；Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system;◆ORABS、CRABS、没有细菌要进行隔离器控制系统。ORABS, CRABS, aseptic isolator system.

系统运作：/technical parameters

产品型号 model

分娩效果production capacity

洗瓶通过率Washing bottle percent of pass

洗瓶磨损率Washing bottle breakage

消毒气温sterilizing temperature

包装偏差The repackaging of error

加塞合适率Gasser percent of pass

气流层流洁钻石净度度Laminar air cleanliness

负压抽速Vacuum pumping speed

电感量 capacitance

外接电源power supply

总电量显示Total transmission energy

形状宽度boundary dimension

7-25ML国家标准下载西林瓶 7-25ML GBvial

300瓶pcs/分min ～600瓶pcs/分min

≥99%

≤0.1%

300℃-350℃

≤±3%(0.1-10h)

≥99%

100级100c

25m3/H(外配)100cbm/H ～50m3/H(外配)100cbm/H

96kw～235.5kw

380v,50HZ

约 8200KG

约 2000×1750×2370mm
